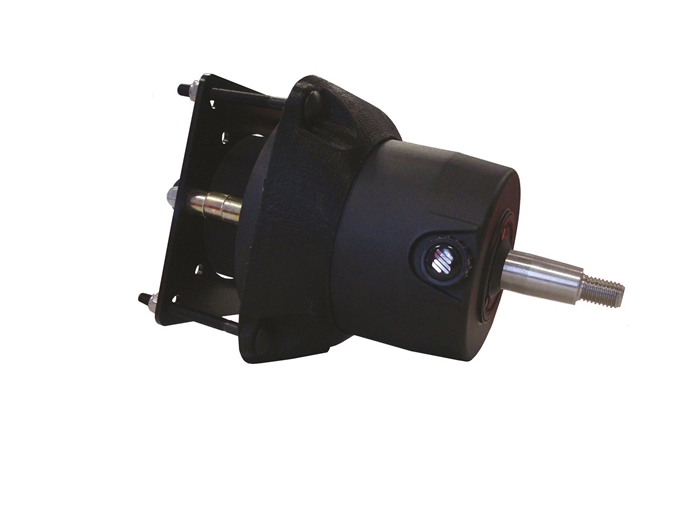

UP20T-X52 42956 F Tilt Mount Hydraulic Helm

Price: $630.95
  • SKUUP20T-X52
- +

UP20T  42956 F Tilt  Mount Hydraulic Helm



Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection
3/4" tapered anodized aluminum shaft Corrosion proof composite housing Easy accessible lock valve and shaft seal for replacement Includes 90° adjustable fittings for 3/8” tube For use with UC94-OBF cylinder only Tilt mechanism X52 - 39250 U for UP20 T pump Tilt range of 48º and five locking positions NOTE: X52 tilt mechanism fits standard Ultraflex tilt mount rotary and rack and pinion steering helms as well as standard Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems X56 - 40198 C square flange permits to install the UP20F pump in an intermediate dashboard position.


UP20T 42956 F Helm Pump Features:

Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection
3/4" tapered anodized aluminum shaft Corrosion proof composite housing Easy accessible lock valve and shaft seal for replacement Includes 90° adjustable fittings for 3/8” tube For use with UC94-OBF cylinder only Tilt mechanism X52 - 39250 U for UP20 T pump Tilt range of 48º and five locking positions NOTE: X52 tilt mechanism fits standard Ultraflex tilt mount rotary and rack and pinion steering helms as well as standard Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems X56 - 40198 C square flange permits to install the UP20F pump in an intermediate dashboard position.
