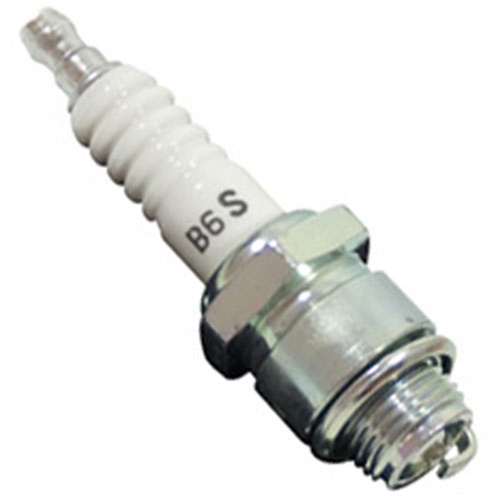

NGK Spark Plug B6S 3510

Price: $1.85
  • SKUB6S
Other products by NGK

NGK Spark Plug B6S 3510

NGK's Standard Plugs are Constructed for Longer Life and Optimum Performance.

  • Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
  • Corrugated Ribs Prevent Flashover
  • Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
  • Copper Core Aids in Heat Removal
  • Triple Seals Prevent Leakage

Body

    Thread Size: 14mm
    Thread Pitch: 1.25mm
    Seat Type: Gasket
    Resistor: No
    Reach: 12.7mm (1/2")
    Hex Size: 13/16" (21mm)
    Terminal Type: Removable Nut
    Overall Height: ISO
    Gap: .039" (1.0mm)

Center Electrode

    Material: Nickel
    Type: Standard
    Size: 2.5mm
    Projection: Non-Projected

Ground Electrode

    Material: Nickel
    Type: Standard
    Quantity: 1

Specifications

    Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
    Brand: NGK
    Heat Range: 6
    Longevity: 30k

Outboard Application

  • Evinrude 100 hp 1966 .030
  • Evinrude 90 hp 1965-1964 .030
  • Evinrude 80 hp 1967-1966 .030
  • Evinrude 75 hp V4 1965-1960 .030
  • Evinrude 60 hp V4 1967-1964 .030
  • Evinrude 50 hp 1959-1958 .030
  • Evinrude 40 hp 1971-1956 / 40 hp 1971-1965 / 40 hp 1973-1960 / 40 hp 40E, 40EL, 40R, 40RL 1973-1969 .030
  • Evinrude 35 hp 2-cyl. 1959-1957 .030
  • Evinrude 33 hp 1971-1965 .030
  • Evinrude 30 hp 1971-1956 .030
  • Evinrude 28 hp 1964-1962 .030
  • Evinrude 25 hp 1955-1952 / 25 hp 1976-1969 / 25 hp 20R, 25R 1972-1969 / 25 hp 20RL, 25RL 1972-1971 .030
  • Evinrude 25 hp 25E, 25EL 1976-1972 / 25R, 25RL 1976-1973 .030
  • Evinrude 20 hp 1973-1966 / 20 hp 20R, 20RL 1973 / 20 hp 20R, 25R 1972-1969 / 20 hp 20RL, 25RL 1972-1971 .030
  • Evinrude 18 hp 1972-1950 / 18 hp 1973-1957 .030
  • Evinrude 15 hp 1958-1956 .030
  • Evinrude 14 hp 1972-1950 .030
  • Evinrude 10 hp 1963-1952 / 10 hp Sportwin 1973-1956 .030
  • Evinrude 9.5 hp 1973-1952 / 9.5 hp Sportwin 1973-1956 .030
  • Evinrude 7.5 hp 1958-1952 .030
  • Evinrude 6.0 hp 1976-1965 / 6.0 hp 1976-1975 / 6.0 hp 6R, 6RL 1976-1971 / 6.0 hp Fisherman 1974-1956 .030
  • Evinrude 5.5 hp 1964-1956 / 5.5 hp Fisherman 1974-1956 .030
  • Evinrude 5.2 hp Lightwin 1974-1952 .030
  • Evinrude 5.0 hp Angler 1968-1965 .030
  • Evinrude 4.0 hp 4R, 4W 1976-1969 / 4.0 hp V4, V4A, V4M 1967-1958 / 4.0 hp V4S, VX, VXH 1967-1958 / 4.0 hp Yachtwin 1974-1964 .030
  • Evinrude 3.4 hp Yachtwin 1974-1964 .030
  • Evinrude 3.3 hp 1951-1948 .030
  • Evinrude 3.0 hp 1968-1952 / 3.0 hp Lightwin 1974-1952 .030
  • Evinrude 2.0 hp 1970-1968 / 2.0 hp 2R 1984-1971 / 2.0 hp Jr., Colt 1990-1971 .030
  • Evinrude 1.5 hp 1970-1968 .030
  • Evinrude 1.2 hp Magneto 1990-1986 .030
  • Evinrude 1.0 hp 1R 1970-1968 .030
  • Johnson 100 hp 1966 .030
  • Johnson 90 hp 1965-1964 .030
  • Johnson 80 hp 1967-1966 .030
  • Johnson 75 hp V4 1965-1960 .030
  • Johnson 60 hp V4 1967-1964 .030
  • Johnson 50 hp 1959-1958 .030
  • Johnson 40 hp 1973-1960 / 40 hp 40E, 40EL, 40R, 40RL 1973-1969 .030
  • Johnson 35 hp 1959-1957 / 35 hp 1970-1969 .030
  • Johnson 33 hp 1970-1969 .030
  • Johnson 28 hp 1964-1962 .030
  • Johnson 25 hp 1955-1952 / 25 hp 1976-1969 / 25 hp 20R, 25R 1972-1969 / 25 hp 25E, 25EL, 25R, 25RL 1976-1973 .030
  • Johnson 20 hp 1973-1966 / 20 hp 20R, 20RL 1973 / 20 hp 20R, 25R 1972-1969 / 20 hp 20RL, 25RL 1972-1971 .030
  • Johnson 18 hp 1973-1957 / 18 hp Fastwin 1972-1950 .030
  • Johnson 15 hp 1958-1956 / 15 hp 1971-1956 .030
  • Johnson 14 hp Fastwin 1972-1950 .030
  • Johnson 10 hp 1963-1952 .030
  • Johnson 9.5 hp 1973-1952 .030
  • Johnson 7.5 hp 1958-1952 .030
  • Johnson 6.0 hp 1976-1965 / 6.0 hp 6R, 6RL 1976-1971 .030
  • Johnson 5.5 hp 1964-1956 .030
  • Johnson 5.2 hp Lightwin 1974-1952 .030
  • Johnson 5.0 hp Angler 1968-1965 .030
  • Johnson 4.0 hp 1976-1969 / 4.0 hp 4R, 4W 1976-1969 / 4.0 hp V4, V4A, V4M 1967-1958 / 4.0 hp V4S, VX, VXH 1967-1958 .030
  • Johnson 3.3 hp 1951-1948 .030
  • Johnson 3.0 hp 1968-1952 / 3.0 hp Lightwin 1974-1952 .030
  • Johnson 2.0 hp 1970-1968 / 2.0 hp 2R 1984-1971 / 2.0 hp Colt, Jr 1990-1971 .030
  • Johnson 1.5 hp 1970-1968 .030
  • Johnson 1.2 hp Magneto 1990-1986 .030
  • Johnson 1.0 hp 1R 1970-1968 .030
  • Mercury 70 hp 700 6-cyl. 1961-1960 .025
  • Mercury 60 hp 600 6-cyl. 1960 .025
  • Mercury 50 hp 500 1964-1961 .025
  • Mercury 45 hp 450 1962 .025
  • Mercury 40 hp 400 1961-1960 .025
  • Mercury 35 hp 350 1965-1963 / 35 hp 350 4-cyl. 1961 .025
  • Mercury 30 hp 300 4-cyl. 1960 .025
  • Mercury 25 hp 250 1962 .025
  • Mercury 20 hp 200 1961-1960 / 20 hp 200 1966-1963 .025
  • Mercury 15 hp 150 1961-1960 .025
  • Mercury 9.8 hp 100 1961-1960 / 9.8 hp 110 1966-1962 .025
  • Mercury 6.0 hp 60 1966-1963 .025
  • Mercury 3.9 hp 39 1966-1964 .025
  • Sea King (Wards) 5.0 hp 1969 .035
